Description

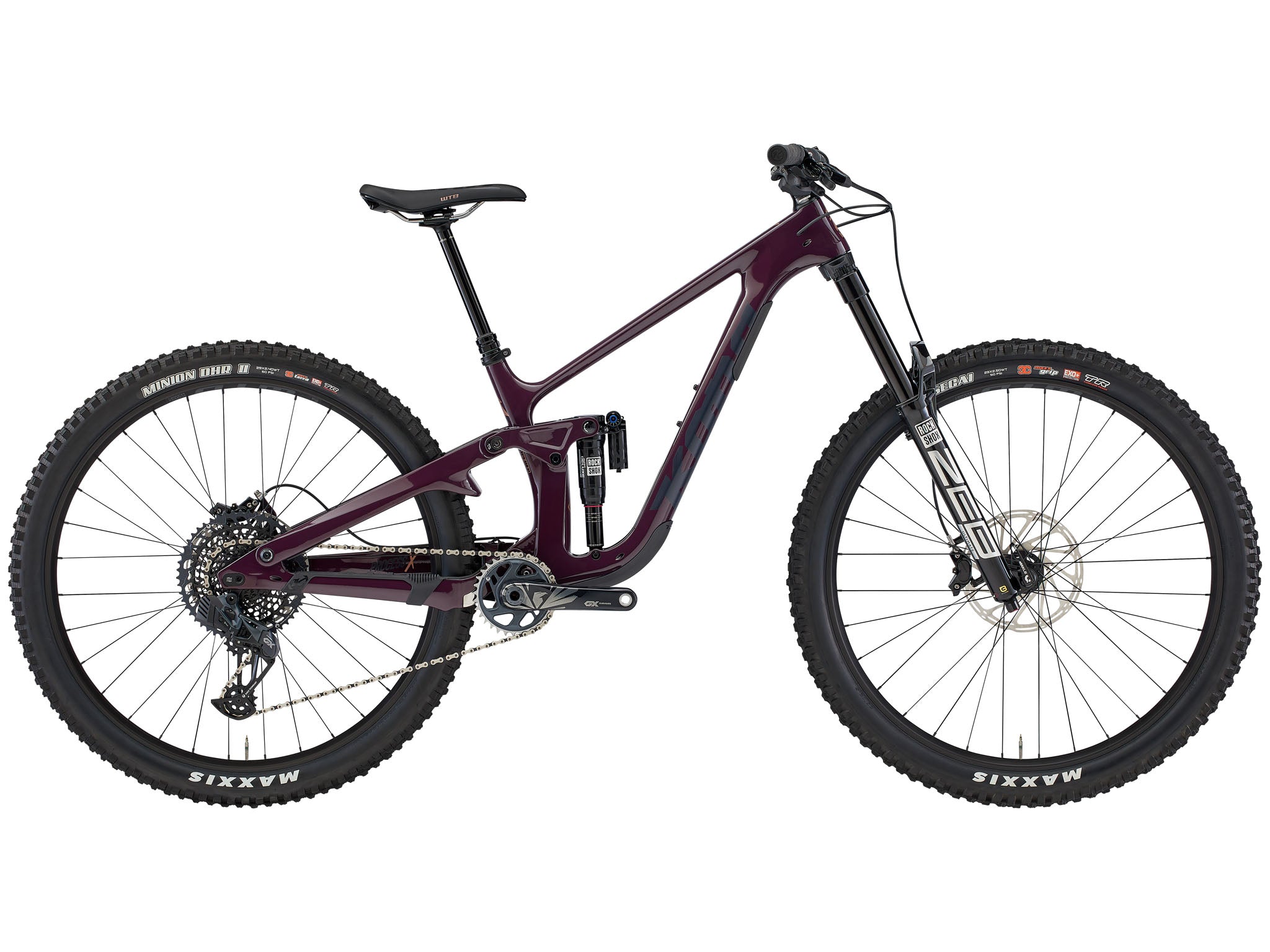

If the Undertaker rode a mountain bike, he'd undoubtedly ride the Process X CR DL. Aimed at nothing but ripping riders on the most technical of terrain, the Process X DL is a monster on the trails. A full carbon frame features high-end components that leave nothing to be desired. 170mm of plush travel ensures that even the biggest hits are well tamed. Clean lines, fewer cables, and more badass than ever before, the Process X CR DL is as stealthy as it is aggressive. "Where the Kona Process X DL did excel, was in exuding a sense of confidence and safety descending, with one tester going so far as to say it rode like, 'it would take a bullet for me.'" -Beta Mag
Tech Specs
| Frame Material | Kona Carbon 162mm Travel |
| Sizes | S, M, L, XL |
| Rear Shock | RockShox Super Deluxe Ultimate Trunnion |
| Fork | RockShox Zeb Ultimate RC2 Charger 2.1 DebonAir 170mm Tapered 110mm Spacing |
| Crankarms | SRAM GX-Eagle Carbon DUB |
| Chainrings | 32t X-Sync Eagle |
| B/B | SRAM DUB PF92 |
| Pedals | n/a |
| Chain | SRAM GX-Eagle |
| Cassette | SRAM X01-Eagle 10-52t 12spd |
| Chainguide | n/a |
| F/D | n/a |
| R/D | SRAM GX AXS |
| Shifters | SRAM GX AXS |
| Brake Calipers | SRAM Code RSC |
| Front Brake Rotor | SRAM Centerline 200mm |
| Rear Brake Rotor | SRAM Centerline 200mm |
| Brake Levers | SRAM Code RSC |
| Headset | FSA Orbit 1.5 EP ZS |
| Handlebar | Kona XC/BC 35 |
| Stem | Kona XC/BC 35 |
| Seatpost | Rock Shox Reverb w/1x Remote Lever 31.6mm |
| Seat Clamp | Kona Clamp |
| Grips | Kona Key Grip |
| Saddle | WTB Volt |
| Front Hub | DT Swiss 350 110x15mm |
| Rear Hub | DT Swiss 350 148x12mm |
| Spokes | Double Butted Spokes – 14/15/14g |
| Rims | WTB KOM Trail i30 TCS |
| Front Tire | Maxxis Assegai EXO+ TR 3C 29x2.5" WT |
| Rear Tire | Maxxis Minion DHR II EXO+ TR 3C 29x2.4" WT (27.5x2.4" WT size S) |
| Paint Color | Gloss Plum w/ Matte Ink & Metallic Bronze Decals |
| Travel Front | 170mm |
| Travel Rear | 162mm |
| Wheel Size | 29" |
| Head Tube Angle | 63.5° |
| Seat Tube Angle | 78.2° (S,M), 78.0° (L), 77.9° (XL) |
Product Identifiers
| Brand | Kona Bicycles |
| Type | Mountain Bike |
| SKU | B36PRXCD01 |
| UPC | 841073152223 |
| MPN | — |
